ENCLOSURE SYSTEM V-PANO TYPE

ENCLOSURE SYSTEM V-PANO TYPE

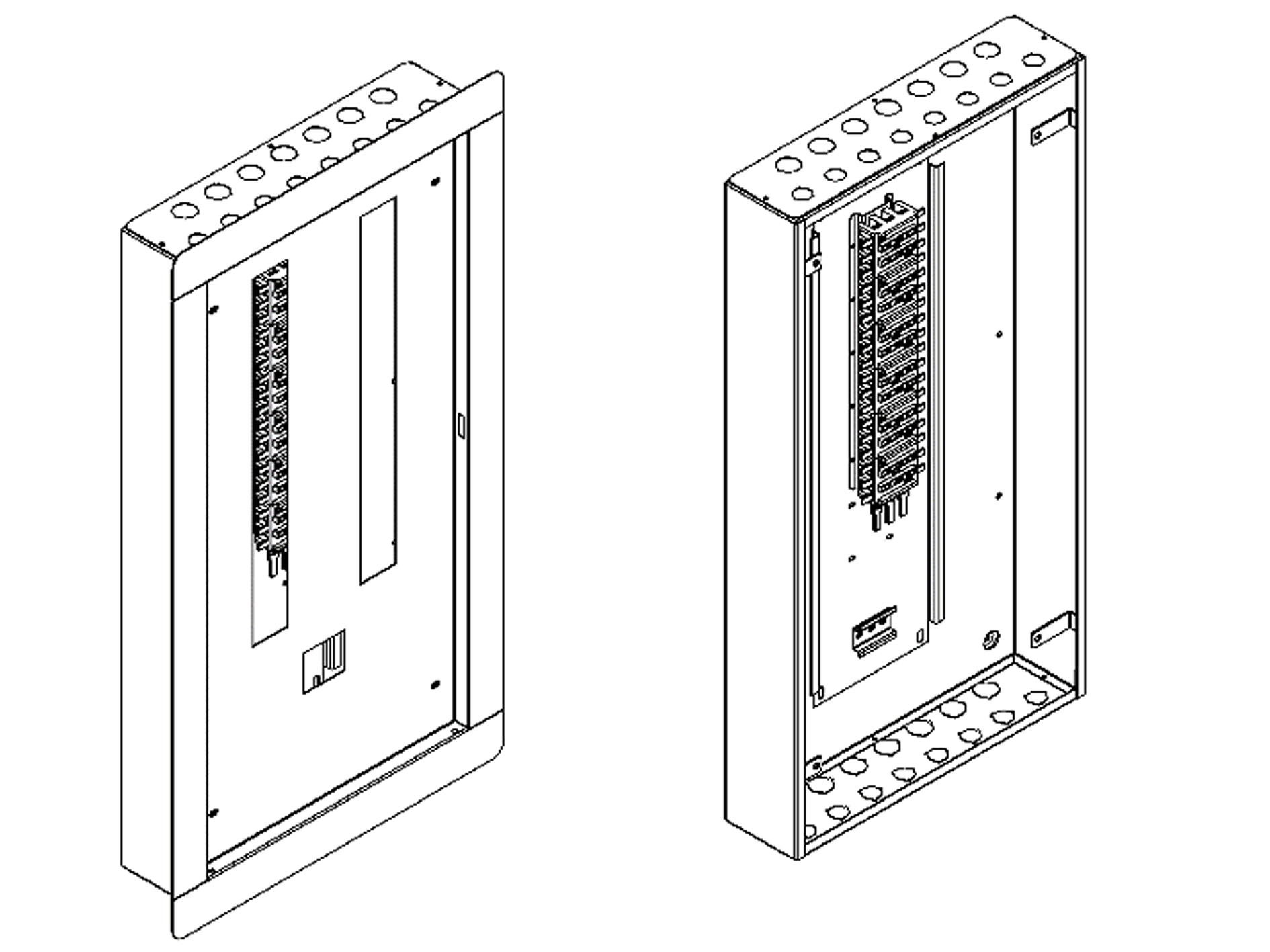

Flush sheet steel enclosure vertical arrangement
Technical specifications:
▪ Operation voltage: 230/415 Vac
▪ Rated current: 125A / 250A
▪ Rated frequency: 50/60 Hz
▪ Short-time withstand capacity: 15 KA
▪ Material: Cold rolled sheet steel
▪ Surface treatment: Electrostatic painted with epoxy-polyester resin
▪ Paint finish*: Light gray – RAL 9003
▪ Degree of protection: IP31, IP42
▪ Internal structure: Fishbone Vertical arrangement
▪ Cable entry: Top or Bottom
▪ Door opening angel: 120°
▪ Lock: 1 lift and turn latches Lock with 2 rivet Hinges
▪ User Access: Front
▪ Thickness*: 1 mm
▪ Dimensions*: As per standard
▪ Incomer provision**: Acti9 MCB iC60 / C120 or Compact MCCB CVS / NSX /         NSXm (otherwise upon request)
▪ Outgoer provision**: Acit9 MCB 1P or 3P iC60, Acti9 RCBO 1P (otherwise upon request)
