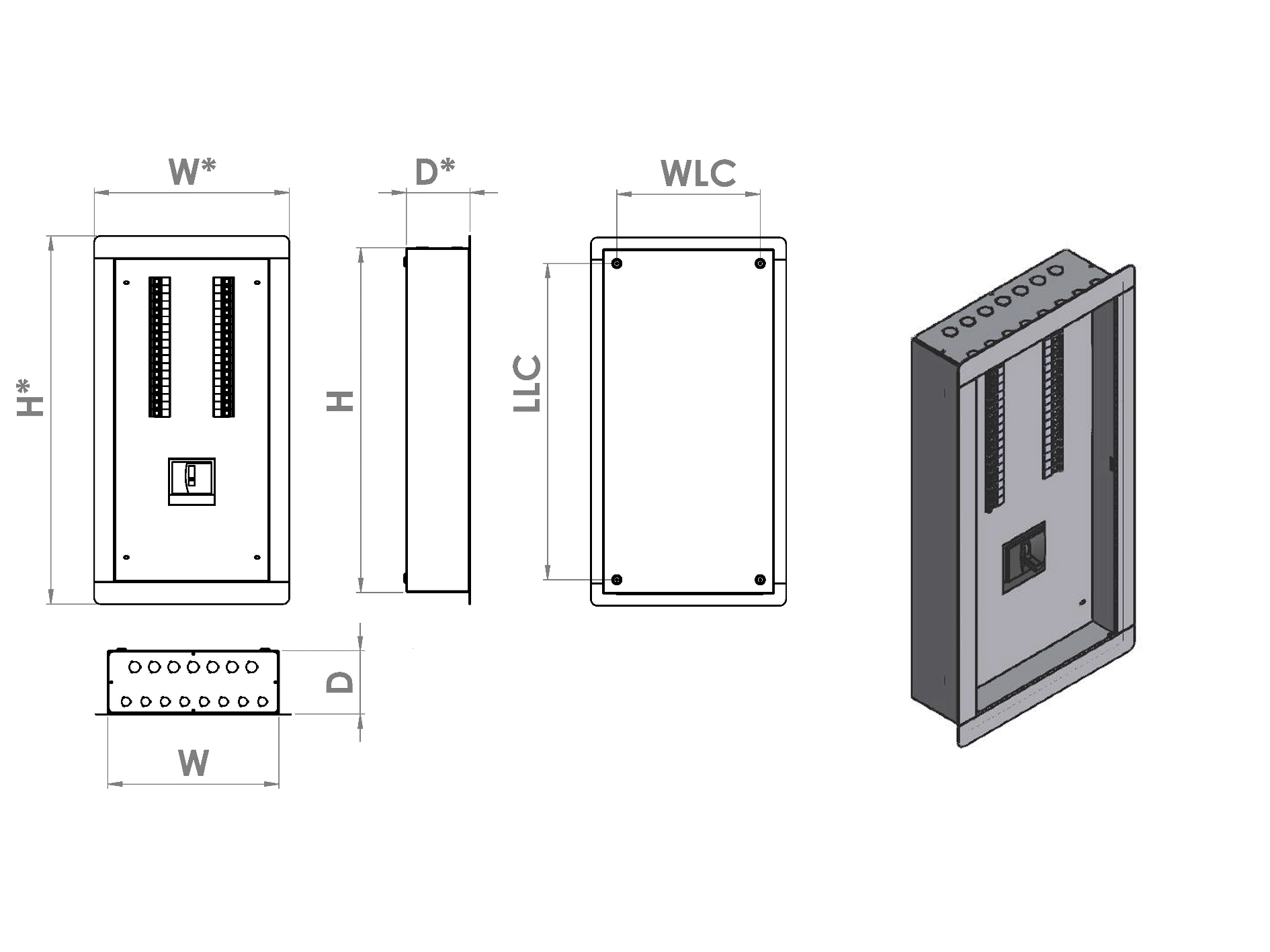

ENCLOSURE SYSTEM MAF TYPE

ENCLOSURE SYSTEM MAF TYPE

Free Stand modular sheet steel enclosure for multi-purpose use

Technical specifications:

Operation voltage: 1150 Vac
Rated current: Up to 5000A
Rated frequency: 50/60 Hz
Short-time withstand capacity: 85KA
Material: Cold rolled sheet steel
Surface treatment: Electrostatic painted with epoxy-polyester resin
Paint finish: Light gray – RAL 7035
Degree of protection: IP42, IP54
Internal separation: From 1 to Form 4b
Cable entry: Top or Bottom
Door opening angle: 180°
Lock: 1 Rod latch system lock with 4 Hinges
User Access: Front / Rear
Thickness: 1.5 mm
Dimensions: As Per standard
